Gun Barrel Mods

Vehicles > 1/6 Scale > Axis > Hetzer

I wanted a removable gun barrel so made these modifications

Insert an aluminium tube, 12mm outside diameter, inside diameter 10mm, down the barrel

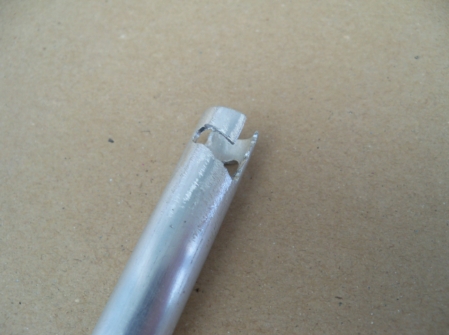

Cut a bayonet slot in one end

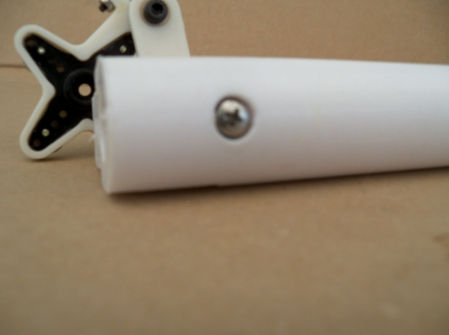

Use a longer bolt in the breach which the bayonet slot will clip around

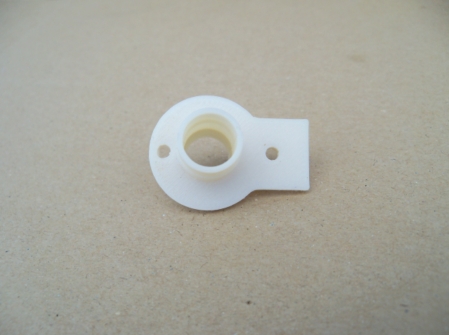

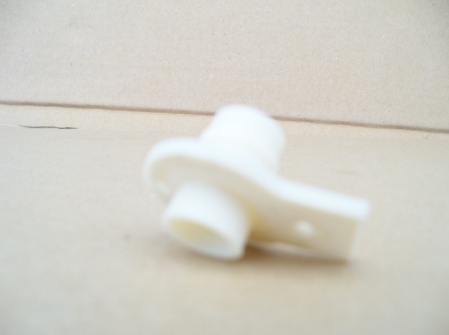

To stop the barrel un-clipping I fitted a spring between the retention plug and the long bolt,

this also has the flange to hold the silicone tube for the gun barrel smoke generator

This is the .stl file for this part. Hetzer Barrel Spring Retainer.stl
