CurbFinders - Murrells Models

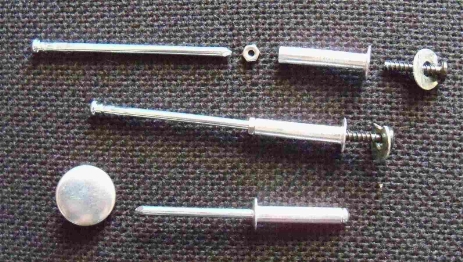

These are the parts I used to make the 'curb finders'.

Two 4x20 aluminium pop rivets
Silver Button for mirror
Two 2mm nuts drilled out to 2.5mm
Two self tapping screws with washers

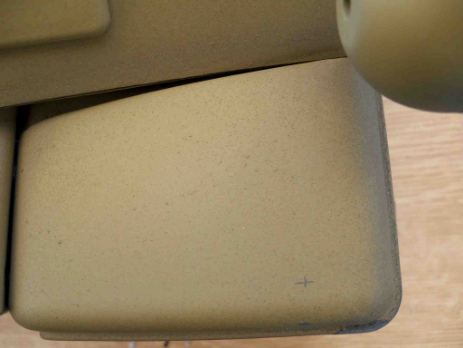

I drilled the hole big enought for the self tapping screw to go through at 1 inch from the front and 1/2 an inch from the side.

To bend the rivet, measure 1/2 inch up from the pointed end and bend to 20 degrees from vertical

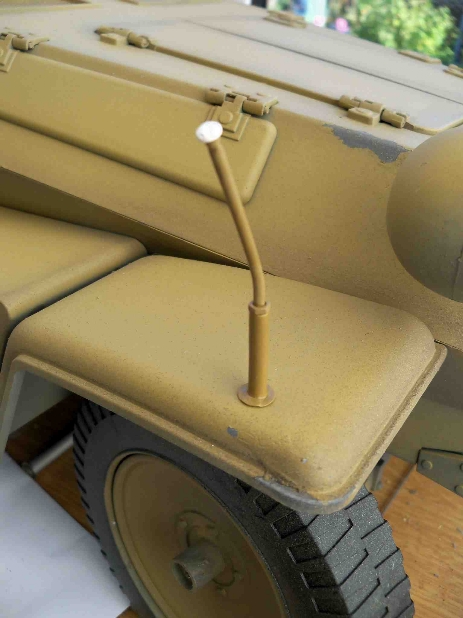

This is what it looks like

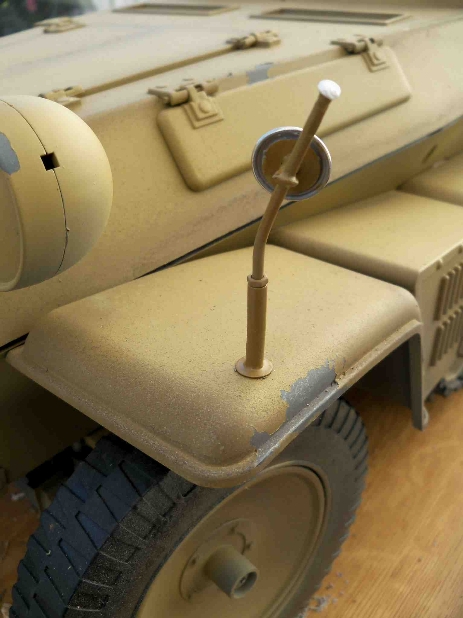

Solder the button to the upright to make the wing mirror.
